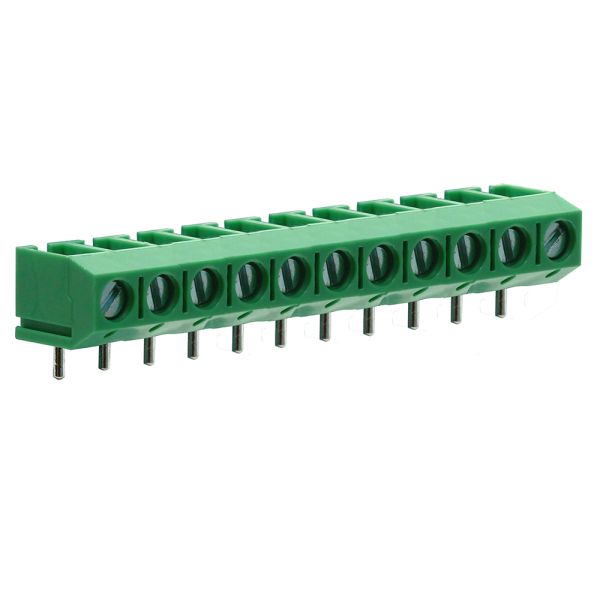

CTBP5050/11 - Platinen-Steckverbinder niedriges Profil, 90°

Platzsparende 11-polige Anschlussklemme mit niedrigem Profil und 5mm Raster. Der Kabeleingang ist um 90° abgewinkelt.

  • 2- & 3-polige Anschlussklemmen aneinaderreihbar
  • Kabeleingang: 1,5mm2 (22-14AWG)
  • 90° Kabeleingang
  • Flammfest: Gefertigt aus grünem UL94-V0 PA66
  • Anschluss mit Kabelschutz
  • Anti-Wicking-Effekt
  • Geführte Pin-Ausrichtung
  • UL und VDE geprüft
Verkaufseinheit (VKE): auf Anfrage
Mindestbestellmenge: auf Anfrage
CTBP5050/11 - Platinen-Steckverbinder niedriges Profil, 90°
  • CTBP5050/2 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/25mm Anschlussklemme mit niedrigem Profil 90° 2-polig

    Anzahl Pole:2 Rastermaß:5 mm Länge:10 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/3 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/35mm Anschlussklemme mit niedrigem Profil 90° 3-polig

    Anzahl Pole:3 Rastermaß:5 mm Länge:15 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/4 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/45mm Anschlussklemme mit niedrigem Profil 90° 4-polig

    Anzahl Pole:4 Rastermaß:5 mm Länge:20 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/5 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/55mm Anschlussklemme mit niedrigem Profil 90° 5-polig

    Anzahl Pole:5 Rastermaß:5 mm Länge:25 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/6 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/65mm Anschlussklemme mit niedrigem Profil 90° 6-polig

    Anzahl Pole:6 Rastermaß:5 mm Länge:30 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/7 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/75mm Anschlussklemme mit niedrigem Profil 90° 7-polig

    Anzahl Pole:7 Rastermaß:5 mm Länge:35 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/8 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/85mm Anschlussklemme mit niedrigem Profil 90° 8-polig

    Anzahl Pole:8 Rastermaß:5 mm Länge:40 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/9 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/95mm Anschlussklemme mit niedrigem Profil 90° 9-polig

    Anzahl Pole:9 Rastermaß:5 mm Länge:45 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/10 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/105mm Anschlussklemme mit niedrigem Profil 90° 10-polig

    Anzahl Pole:10 Rastermaß:5 mm Länge:50 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/11 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/115mm Anschlussklemme mit niedrigem Profil 90° 11-polig

    Anzahl Pole:11 Rastermaß:5 mm Länge:55 mm Breite:7.6 mm Höhe:10 mm

  • CTBP5050/12 - Platinen-Steckverbinder niedriges Profil, 90°

    CTBP5050/125mm Anschlussklemme mit niedrigem Profil 90° 12-polig

    Anzahl Pole:12 Rastermaß:5 mm Länge:60 mm Breite:7.6 mm Höhe:10 mm

Art.-Nr.:CTBP5050/11
Anschlussverfahren:Kabelschutz
Ausrichtung (Stecker/Buchse):Horizontal
Anzahl Pole:11
Ausrichtung Kabeleingang:90°
Rastermaß:5 mm
Anreihbar (Ja/Nein):ja
Zuschneidbar:nein
CE geprüft (Produkt):ja
UL geprüft (Produkt):ja
CSA geprüft (Produkt):nein
VDE geprüft (Produkt):ja
IMQ geprüft (Produkt):nein
CCC geprüft (Produkt):nein
Allgemeine Stromstärke (A):16 A
UL Stromstärke (A):16 A
UL Stromspannung (V):250 V
VDE Stromstärke (A):24 A
VDE Stromspannung (V):250 V
Betriebstemperatur:-40 bis 120 °C
Kabelquerschnitt (AWG) Volldraht:22 bis 14 awg
Kabelquerschnitt (mm²) für Litzenkabel:0,5 bis 1,5
Kabelquerschnitt (mm²) Volldraht:0,5 bis 1,5
Länge:55 mm
Breite:7.6 mm
Höhe:10 mm
Material Gehäuse Basis:Kunststoff
Material Gehäuse:Polyamid (PA)
Brandschutzklasse (UL) des Materials:UL94-V0
Farbe Gehäuse:Grün
